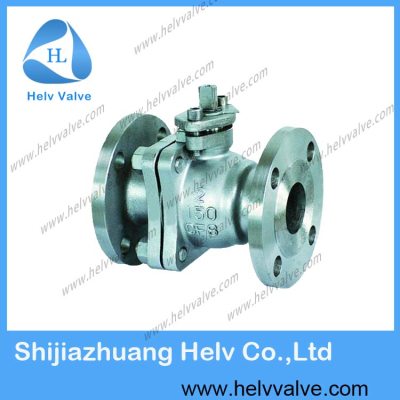

| ss 2pc ball valve , flange end |
|
|
|
ss 2pc ball valve , flange end |
| Design : ASME B16.34,API 608 |
| Wall Thickness : ASME B16.34,EN12516-3 |
| Fire Safe Design Acc : API 607 |
| Flange End : ASME B16.5 CLASS 150/300 |
| DIN PN10-PN40 JIS B2220 10K/20K |
| Inspection&Testing :API598,EN12266 |
| |
| |
|
| |
| |
|
|
|
 |
| STANDARD: |
| 1กข Design : ASME B16.34,API 608 |
| 2กข Wall Thickness : ASME B16.34,EN12516-3 |
| 3กข Fire Safe Design Acc : API 607 |
4กข Flange End : ASME B16.5 CLASS 150/300
DIN PN10-PN40 JIS B2220 10K/20K |
|
|
| |
| Parts name |
Material |
Parts name |
Material |
| Stud |
ASTM A193-B8 |
Stem |
SS304 |
| Nut |
ASTM A194-B8M |
Locking Device |
SS304 |
| End cap |
CF8/CF8M |
Screw nail |
ASTMA193-B8 |
| Seat |
PTFE/TFM-1600 |
Ring washer |
ASTMA193-B8 |
| Ball |
SS304/SS316 |
Handle |
CF8 |
| Gasket |
PTFE |
Hex bolts |
ASTMA193-B8 |
| Body |
CF8/CF8M |
Packing Gland |
CF8 |
| Stem Gasket |
PTFE |
Packing |
PTFE |
| Anti-static device |
SS304 |
|
|
|
|
|
|
|
